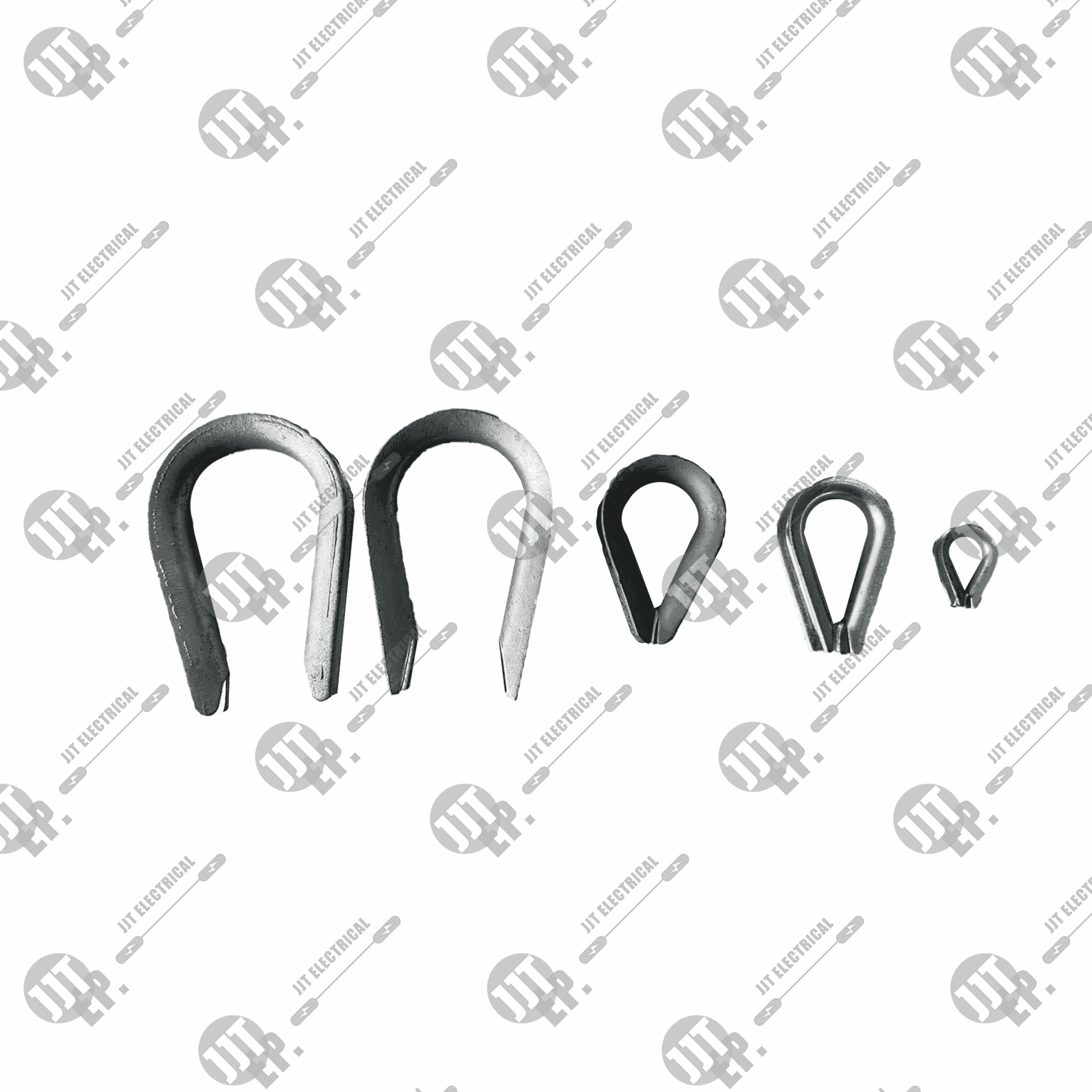

Angle anchor rods

The drawings are for reference only. We can produce according to your specifications. Please contact us.

Description

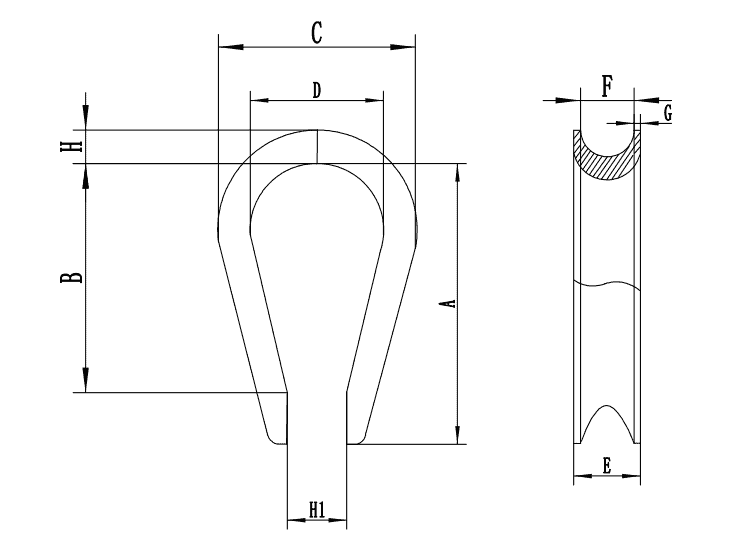

Picture 1.jpg

ModelA(Mm)B(Mm)C(Mm)D(Mm)E(Mm)F(Mm)+-0.76G(Mm)H(Mm)H1(Mm)
1/8″49 33 27 17.5 6.4 4 1.2 3.1 2
3/16″49 33 27 17.5 8 5.6 1.2 3 2
1/4″49 33 27 17.5 9.4 7 1.2 3 2
5/16″54 38 32 20.5 11 8.6 1.2 3 2
3/8″60 41 37 24 13.4 10.4 1.5 4 2
7/16″64 45 42 26 14.2 12 1.5 4.5 2
1/2″70 48 44.5 28.5 17.4 13.4 2 4.8 3
5/8″89 57 60.5 35 22.8 16.8 3 8.6 3
3/4″95 63.5 68 41 27.8 19.8 4 8.4 4
8/7″127 89 81 48 32 24 4 11.2 4
1″145 109 95 63.5 35 27 4 10.4 4
1.Dimension:mm.
2.Material:carbon steel
3.Finish:hot dip galvanized
According to astm-a123
4.Tolerance 5%



The Drawings Are For Reference Only. We Can Produce According To Your Specifications. Please Contact Us.
